SRS Canopy Anchor solution
-
With the KBNest, Isolation of your TIP on your initial throw into the tree crown is not necessary. When you arrive at your TIP after ascending your basal tied system you can establish a canopy anchor in seconds without dismantling your belay device to feed a rope end through a ring. If you haven’t reached your desired high point in the crown, advancing your system is done simply and easily.
-

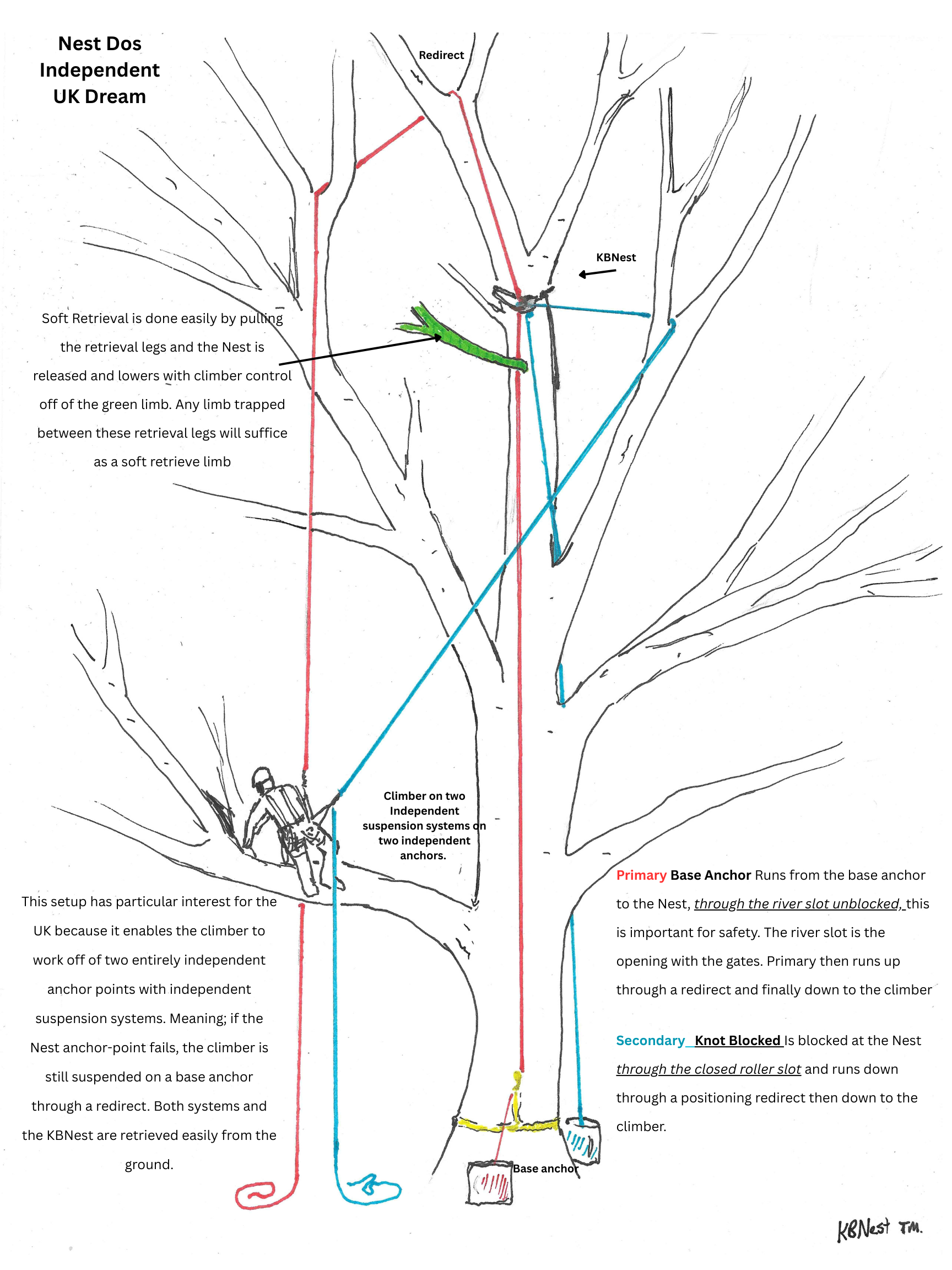

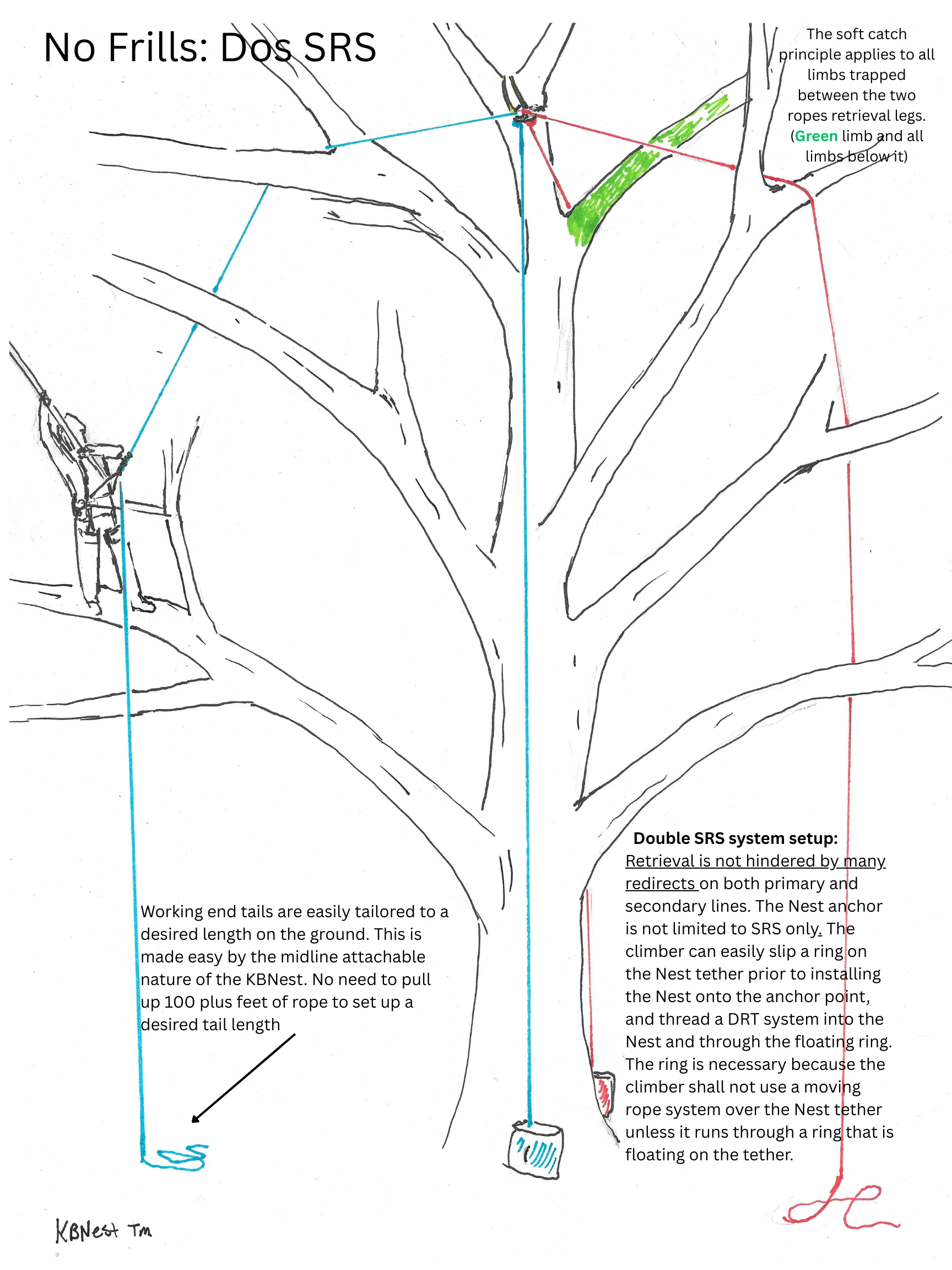

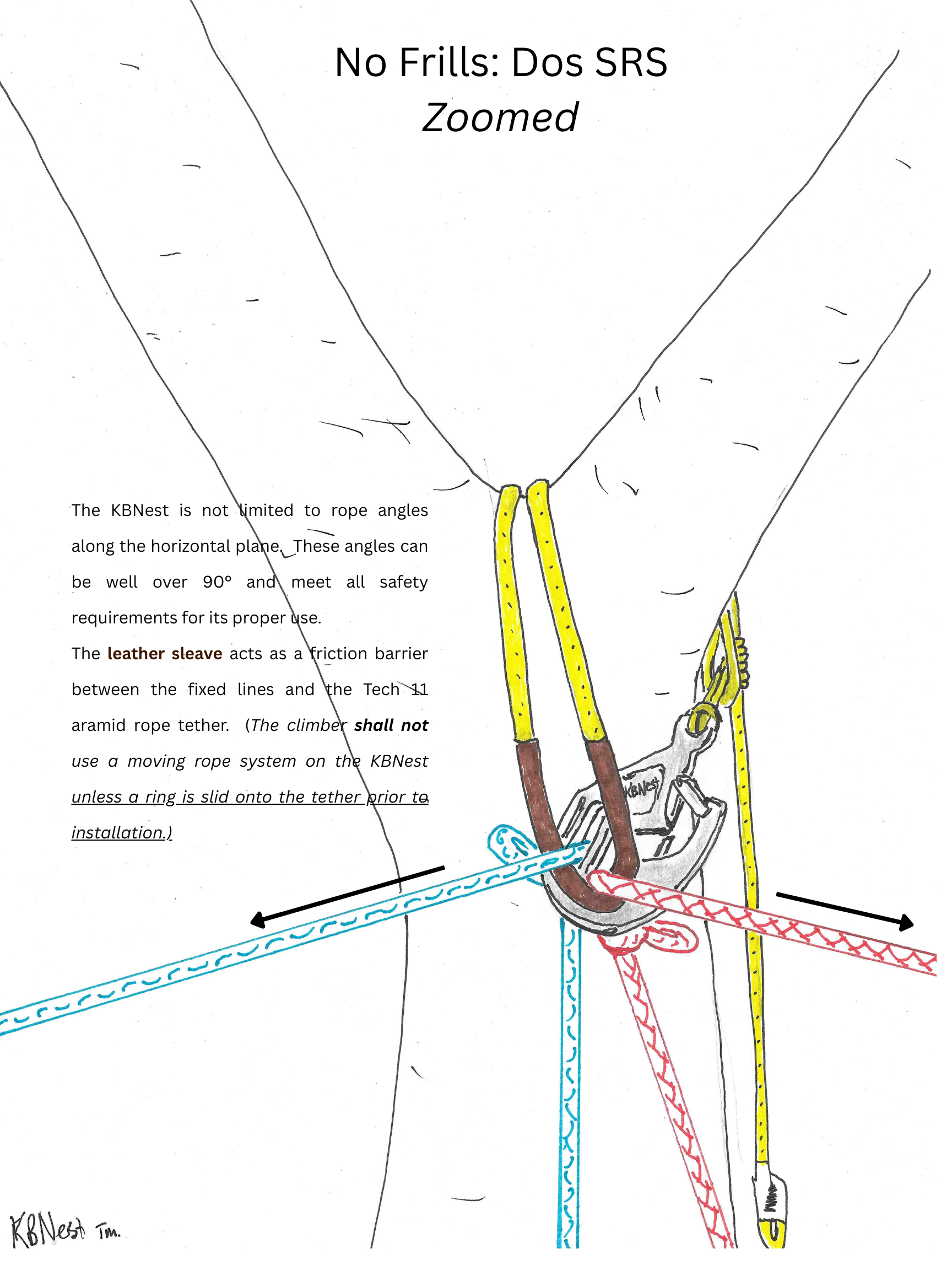

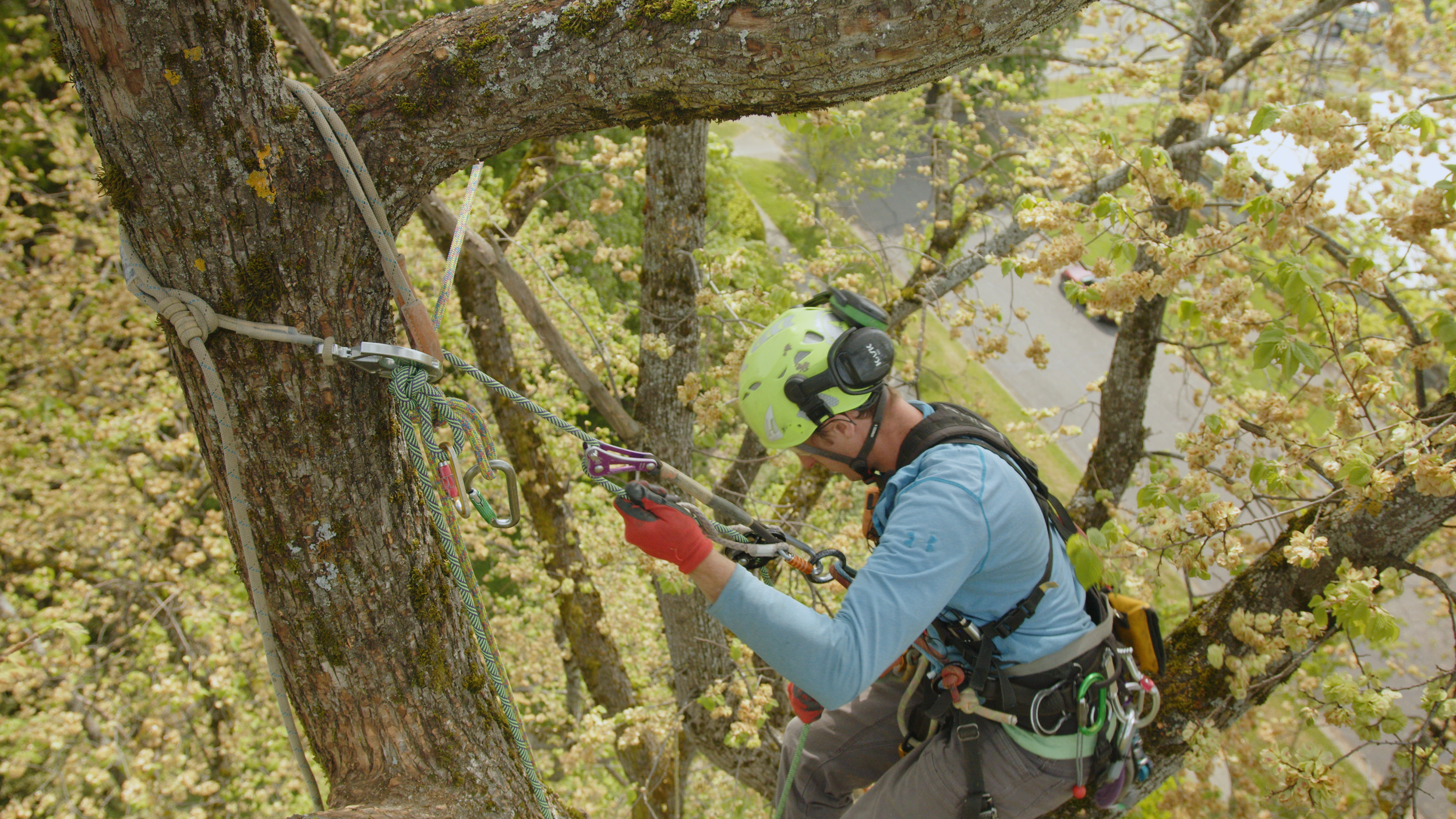

If one line isn’t enough for the job establish two- if two isn’t enough establish three-lines. SRS or DRT.
-
Any level of climber can master set-up of the Nest anchor in minutes. Whether your retrieving 1, 2 or 3 systems, no hardware is required to pass through the TIP on retrieval just a bite of rope and a small leather sleave. Please look at the simple set up and retrieval illustrations below.
$274 $350
HOW IT WORKS

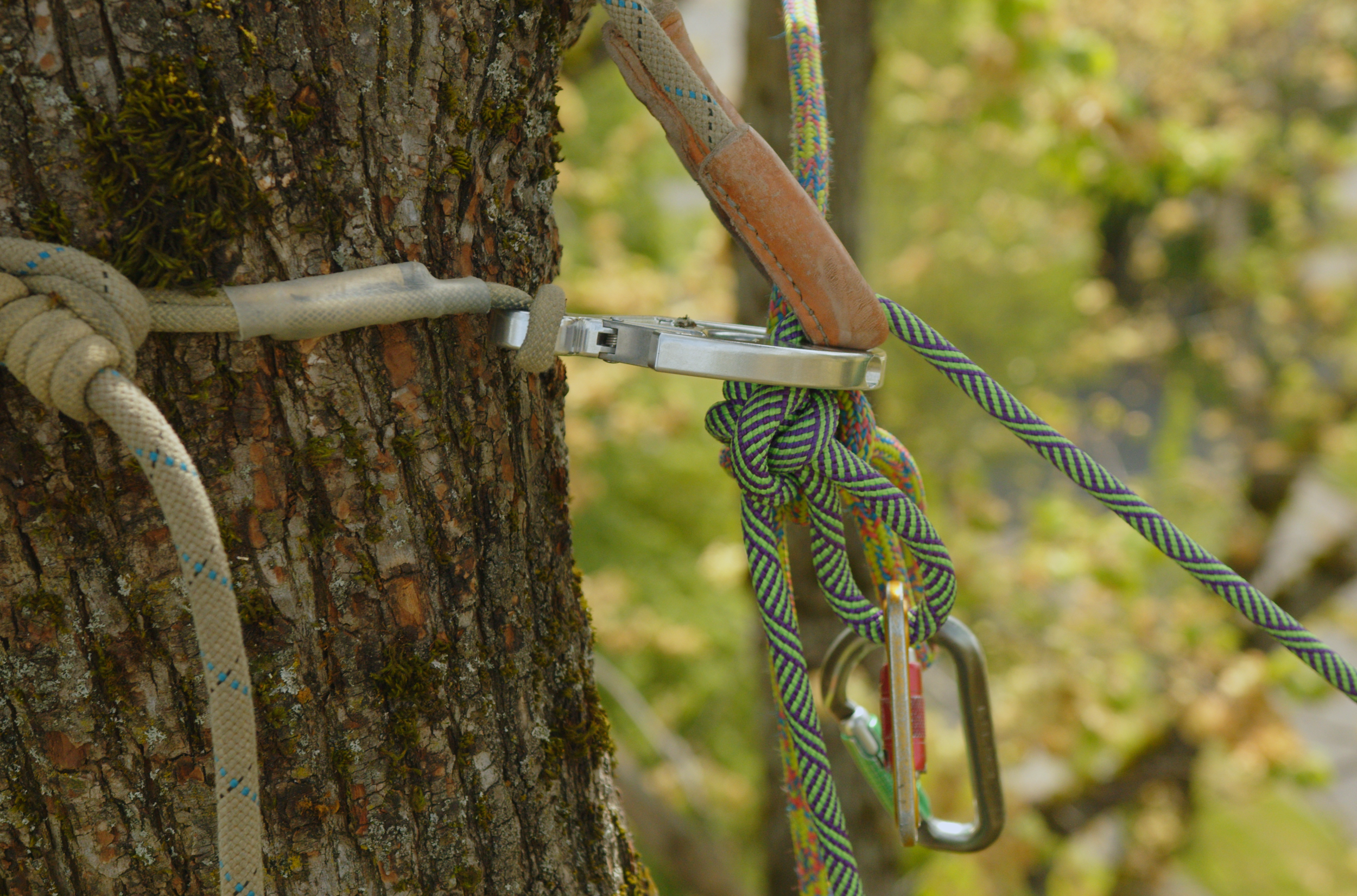

The KBNest is a Midline Attachable SRS Canopy Anchor, capable of anchoring up to three independent climbing lines, with all lines retrievable from the ground without pulling any hardware through the tie in point (TIP).

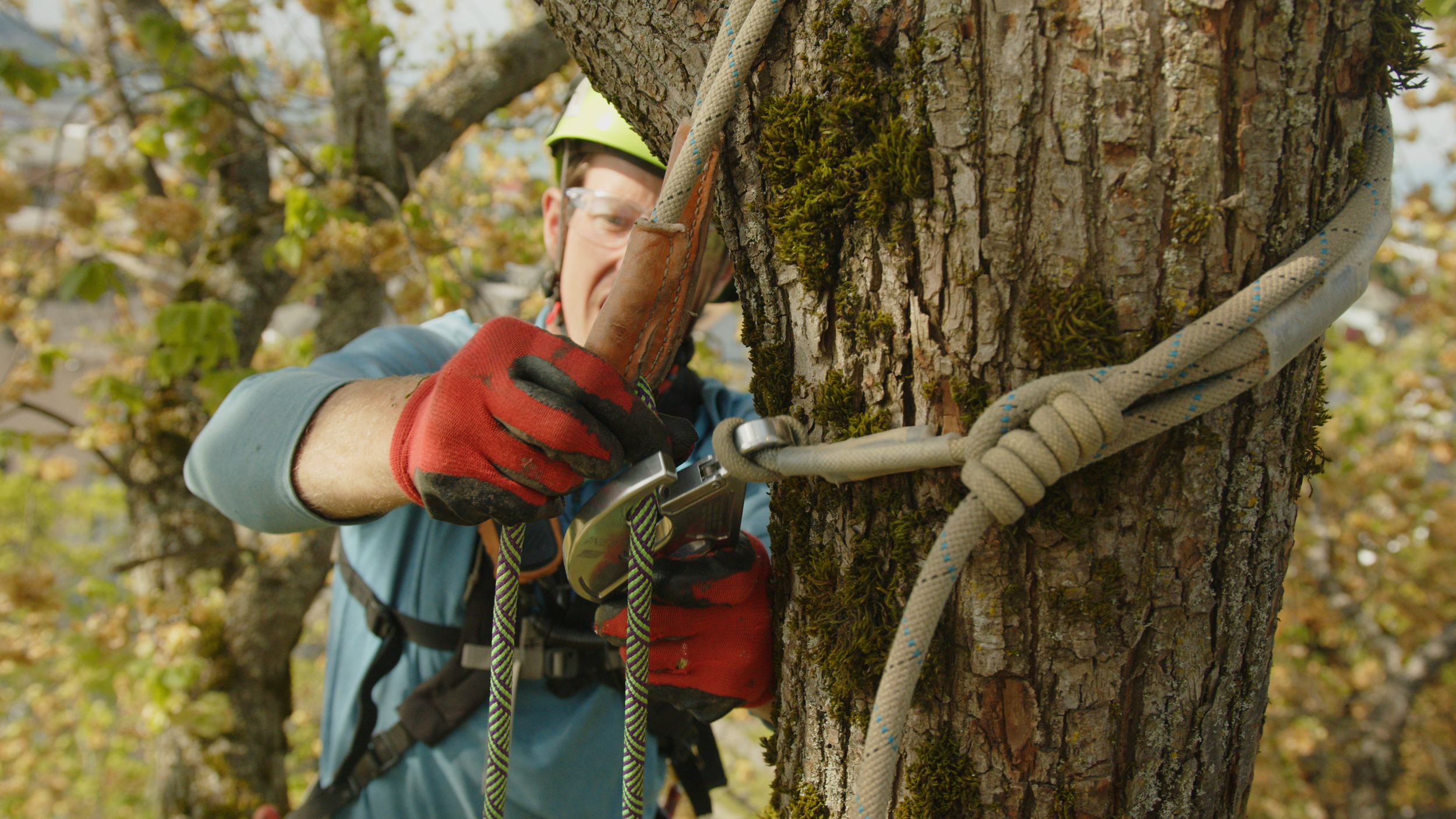

The Anchor accepts SRS and DRT independent and simultaneously. We are designing the Nest to be rated for two person loading, in the event of a rescue. Rescuers will be able to safely use the anchor while the victim is suspended from the same anchor. Climbers can convert a base anchor into a canopy anchor in seconds while staying attached to the same line with their belay device. Prior isolation of your high point-TIP is not necessary when installing a canopy anchor with the Nest. Advancing to a more desirable high point can be done easily with the Nest anchor.

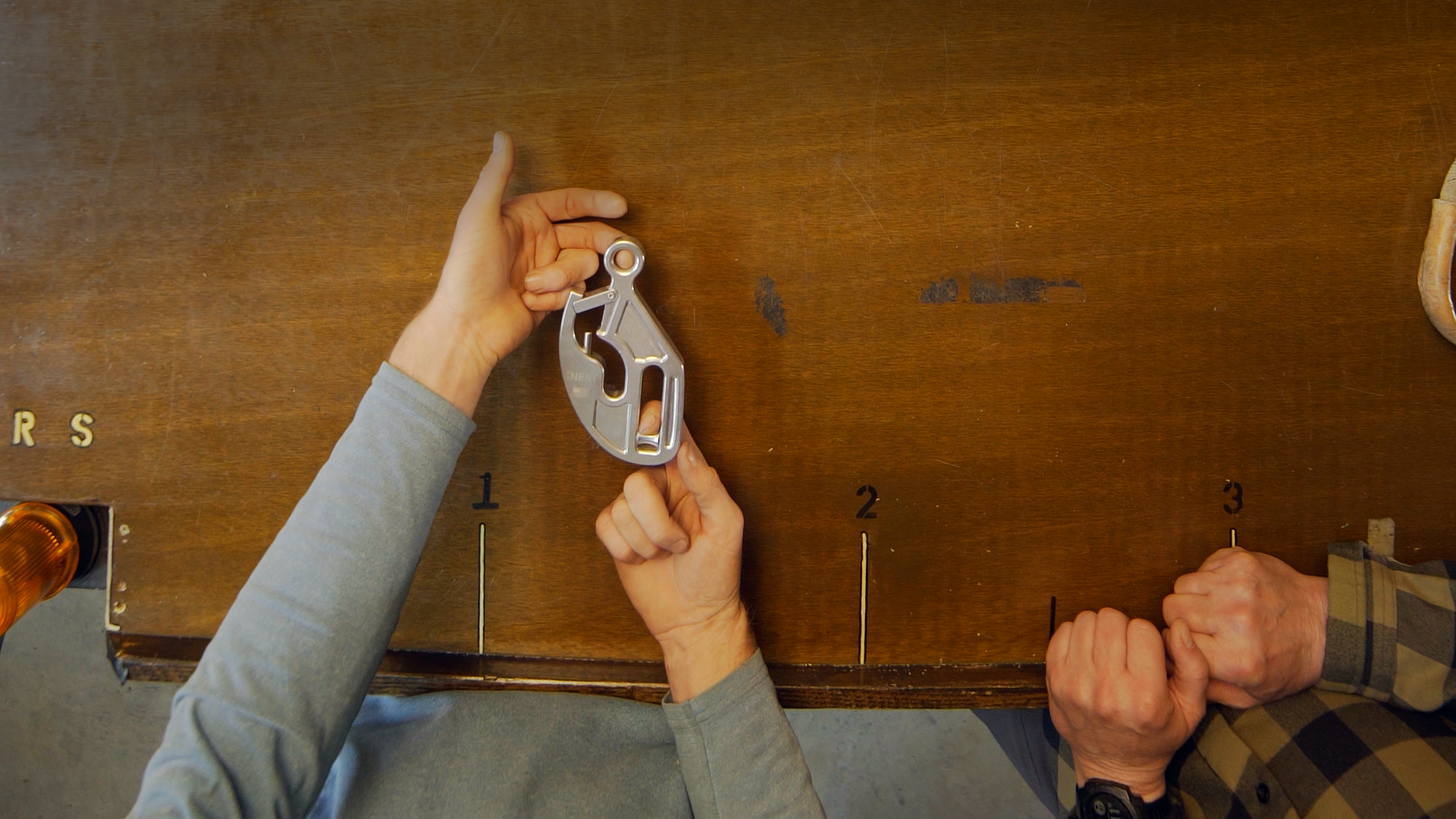

The Nest is adjustable and accepts ropes 9-13mm. It has a roller sheave for reduced friction. It can and should be soft caught over hard surfaces. Retrieval with a single overhand knot or retrieval ball. The Nest has a double locking rope trap, constructed with ½ thick aluminum and a Tech 11 rope tether with a 8mm RIT cord prussik for adjustability.
$274 $350

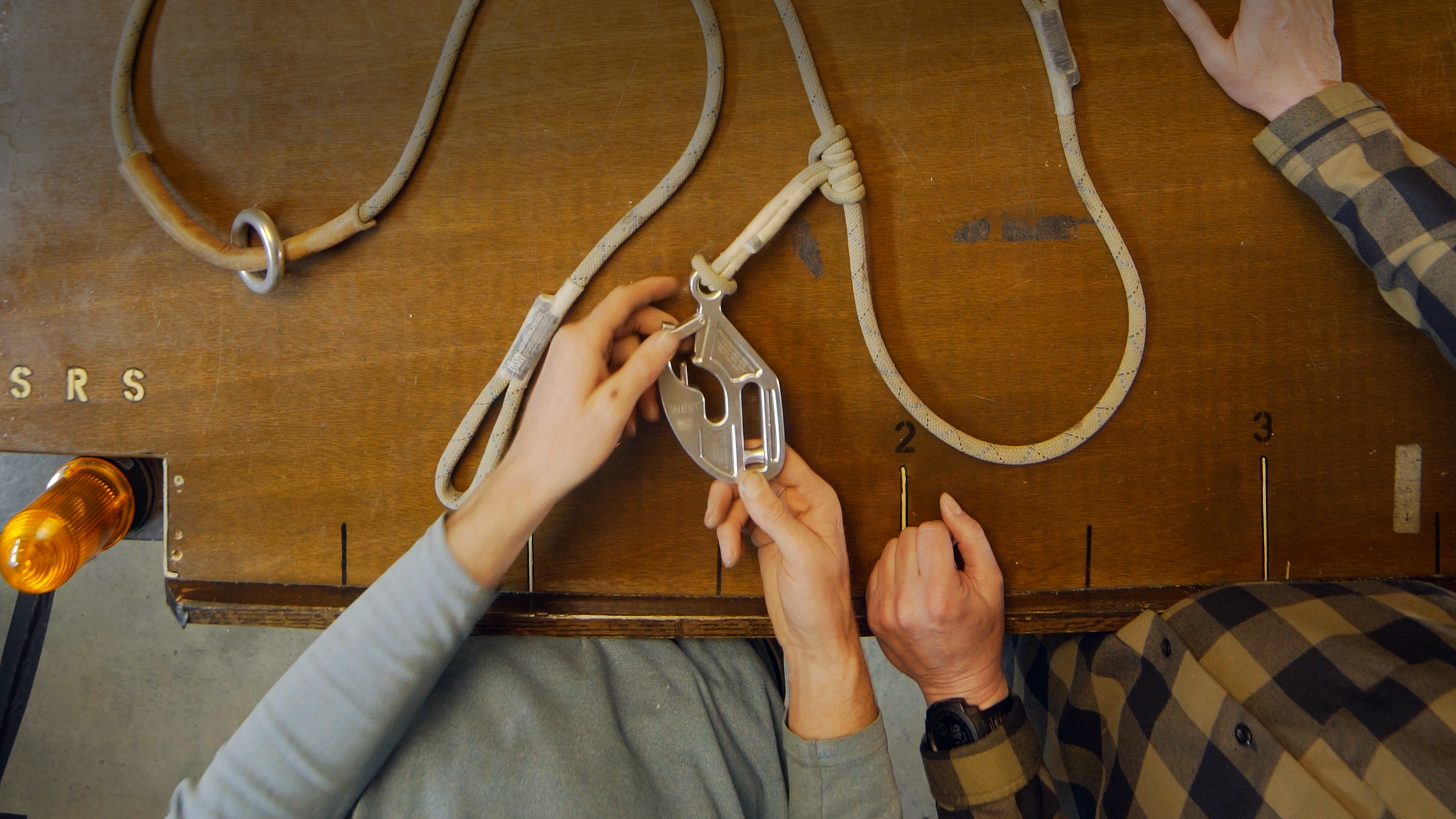

THE STEP-BY-STEP SETUP PROCESS:
STEP 1:

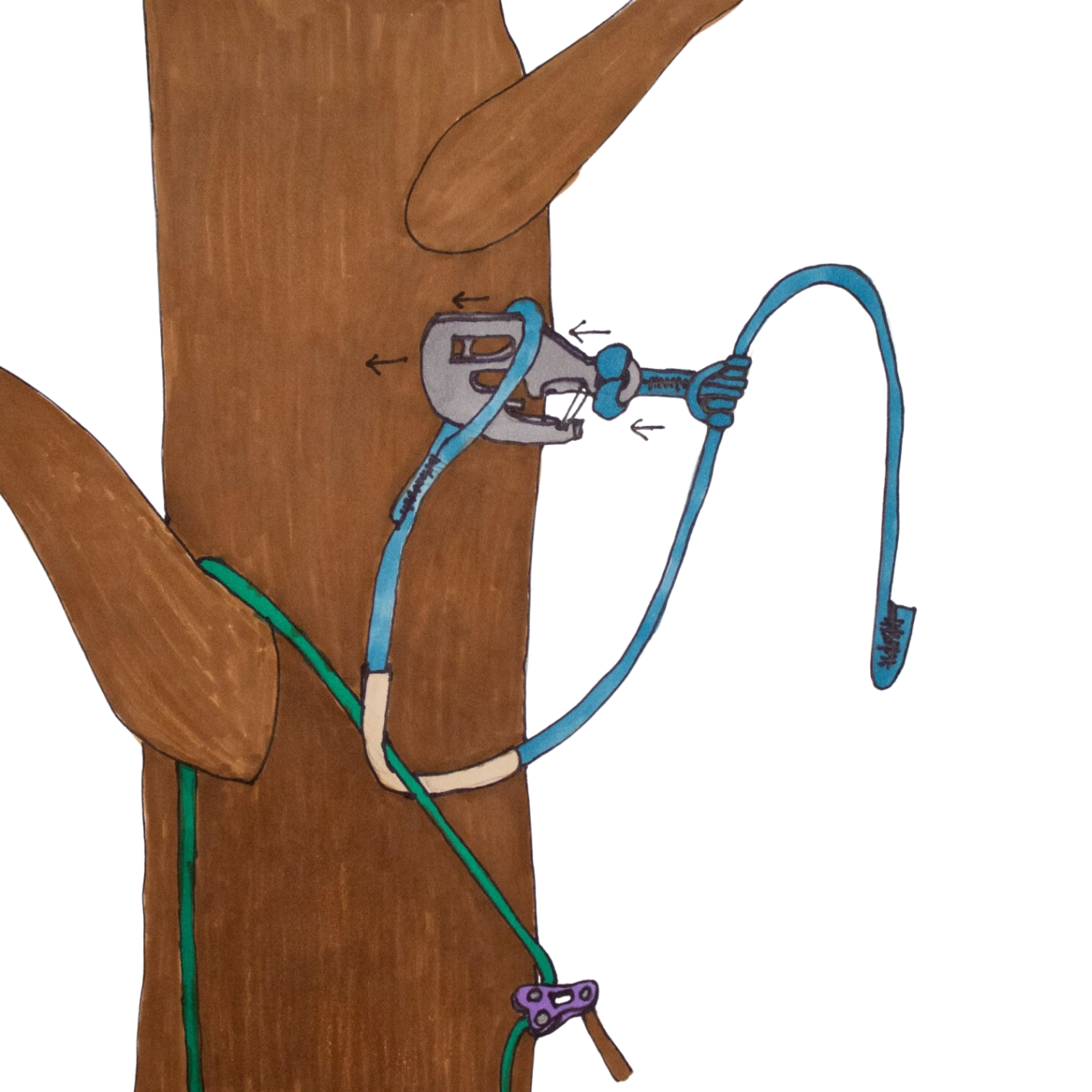

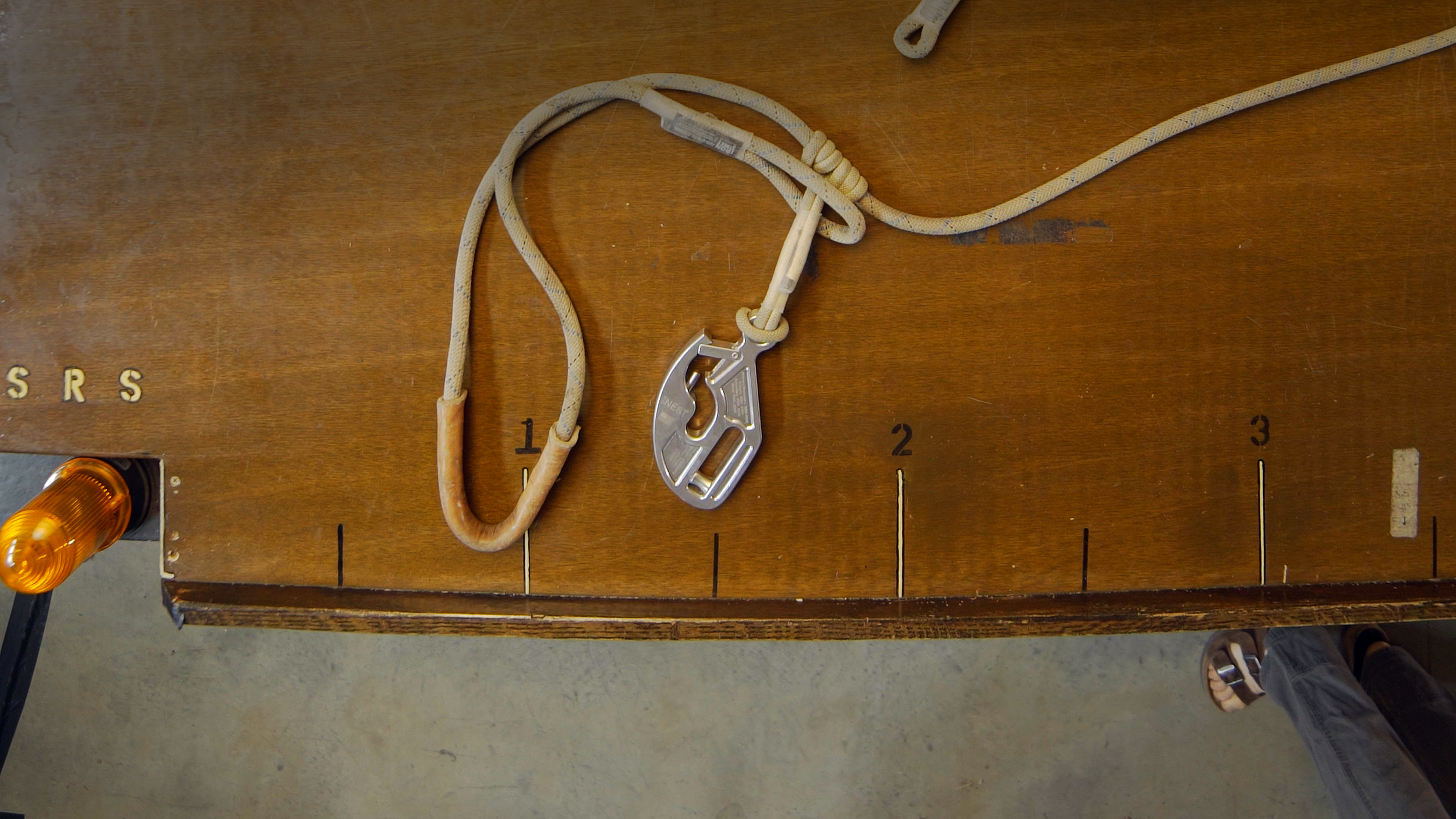

Pass the large sewn eye side of the tether around your SRS line
STEP 3:
Pass the Nest over your T.I.P
STEP 4:

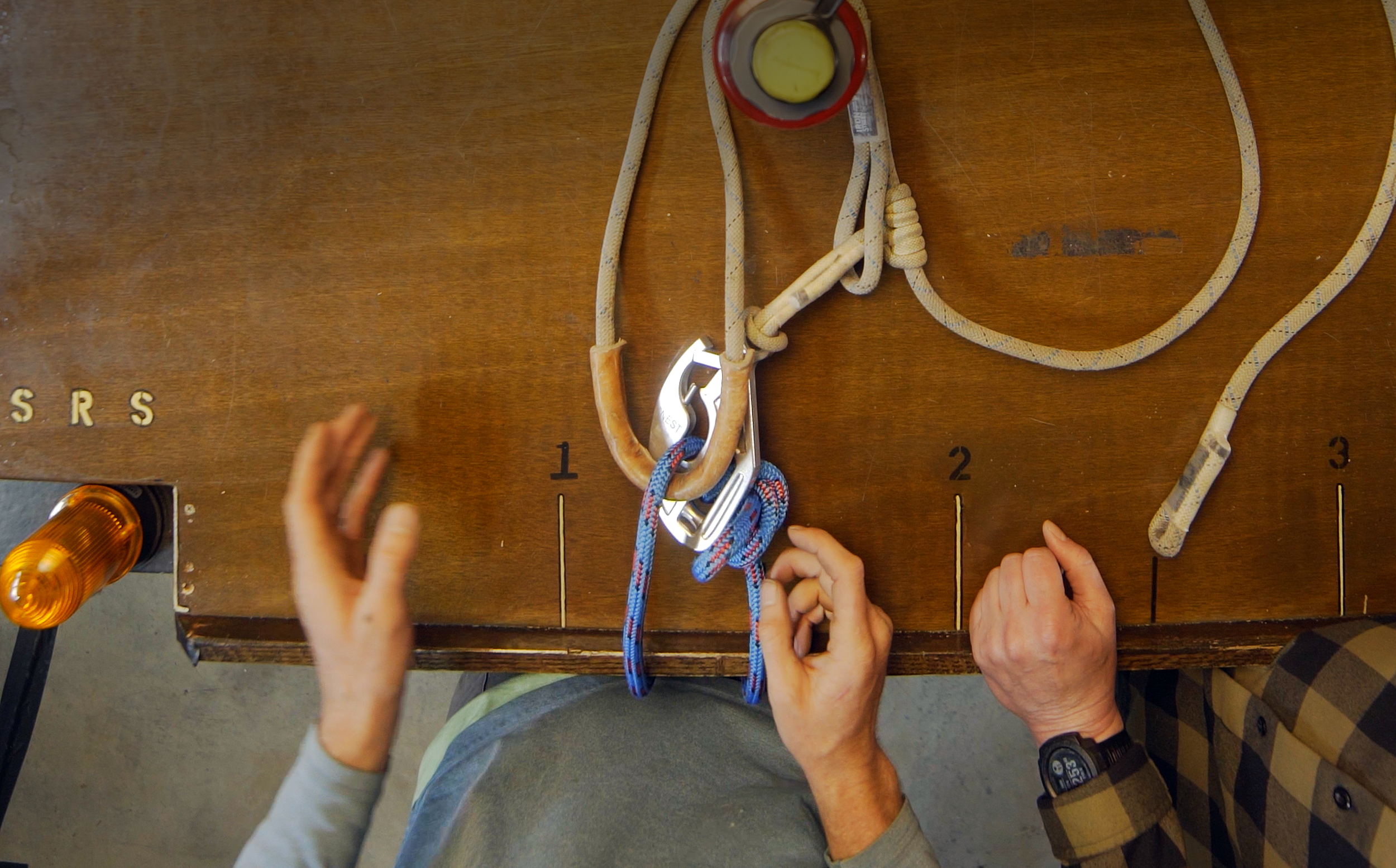

Clip the Nest into your SRS line
STEP 5:

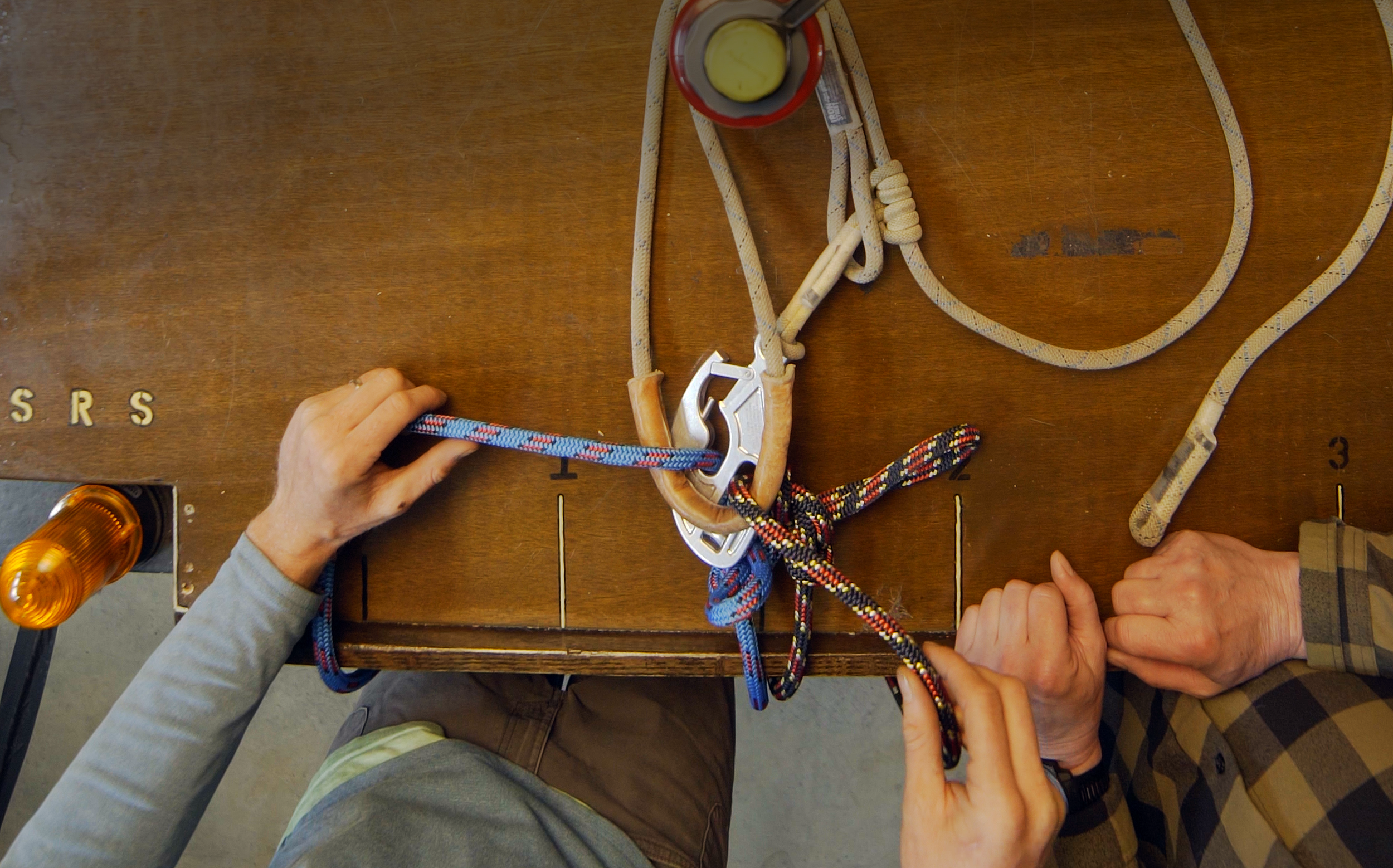

Tie Alpine Butterfly to Block the SRS. You are now ready to work.
STEP 6:
To retrieve the Nest, remove your belay device
Pass the large sewn eye over the Nest device to Midline attach the SRS line.
STEP 2:

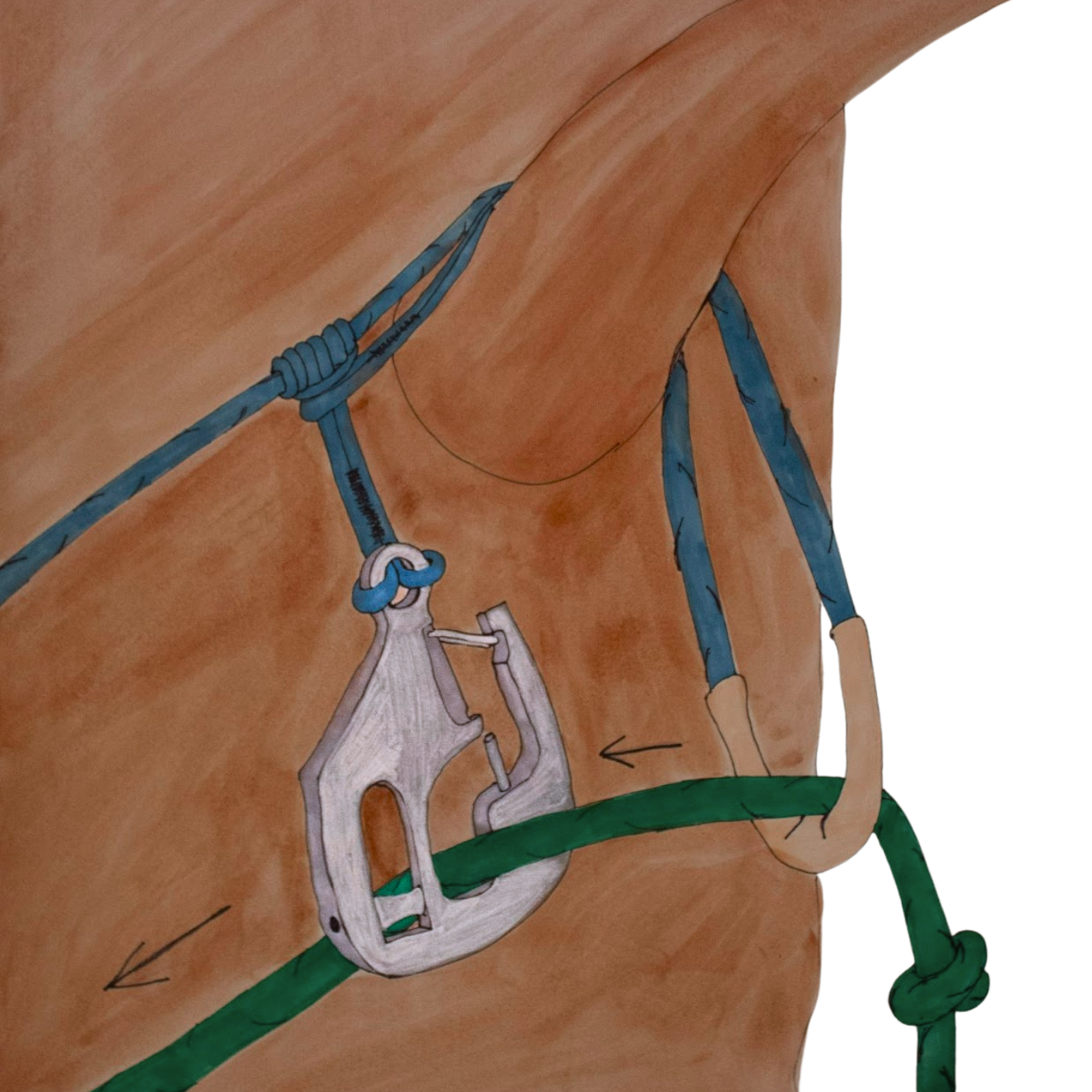

Tie an overhand knot and pull the resting end of the rope through the leather hoop and out of the tree
STEP 7:
Meet
PHILLIP
Climber, arborist, & the brain behind KBNest
I started working ground crew and eventually climbing for my brother's company in 2005. My career progressed and took me to a variety of states and countries working as a groundy, then climber and eventually an ISA certified arborist. I started my company in 2015, today we own and operate Tree Steward LLC in the beautiful Northern Black Hills of South Dakota. In addition to tree climbing my love of the vertical world has brought me to rope access and rock climbing. These three disciplines combined three of my favorite things in life, nature, exercise and rope craft.
In 2020 I realized a need for a midline attachable SRS canopy anchor, but I couldn't find one. So, I began the process of inventing the KBNest I am proud to provide a solution to a real problem for many tree climbers and beyond.
Today we are ready to release the KBNest. anchor. The KBNest TM. is patent pending and is the first midline attachable SRS canopy anchor.
WHAT PEOPLE ARE SAYING…
Jamie Merrit
Climber and Designer with Merritt Arboreal Design
“The KBNest is a brand new take on the retrievable anchor. The combination of features makes it much more versatile and expands its utility beyond just an anchor…If you use an aerial friction saver or anchor in your climbing system then this is worth a try. It makes setting up easy, and it offers multiple options for DRT or SRT configurations.”
Jeff Inman
Production Manager and Climber
“Great design to have a device that allows for an easy transition from basal anchor to canopy anchor. It has lots of options that help solve modern issues in climbing operations. Oftentimes I install a basal anchor for the simplicity of access, but don’t want to stay anchored that way for the exposure of ropes potentially in the way of operations. This allows for a quick and easy way to switch to a canopy anchor and install multiple ropes at once.”
Jared Abrojena
Trainer and Educator with Academytrained
“The KBNest is versatile making it applicable in multiple situations.”
Deyvison DellaGiustina
Owner and Climber with Dayvis Tree Care

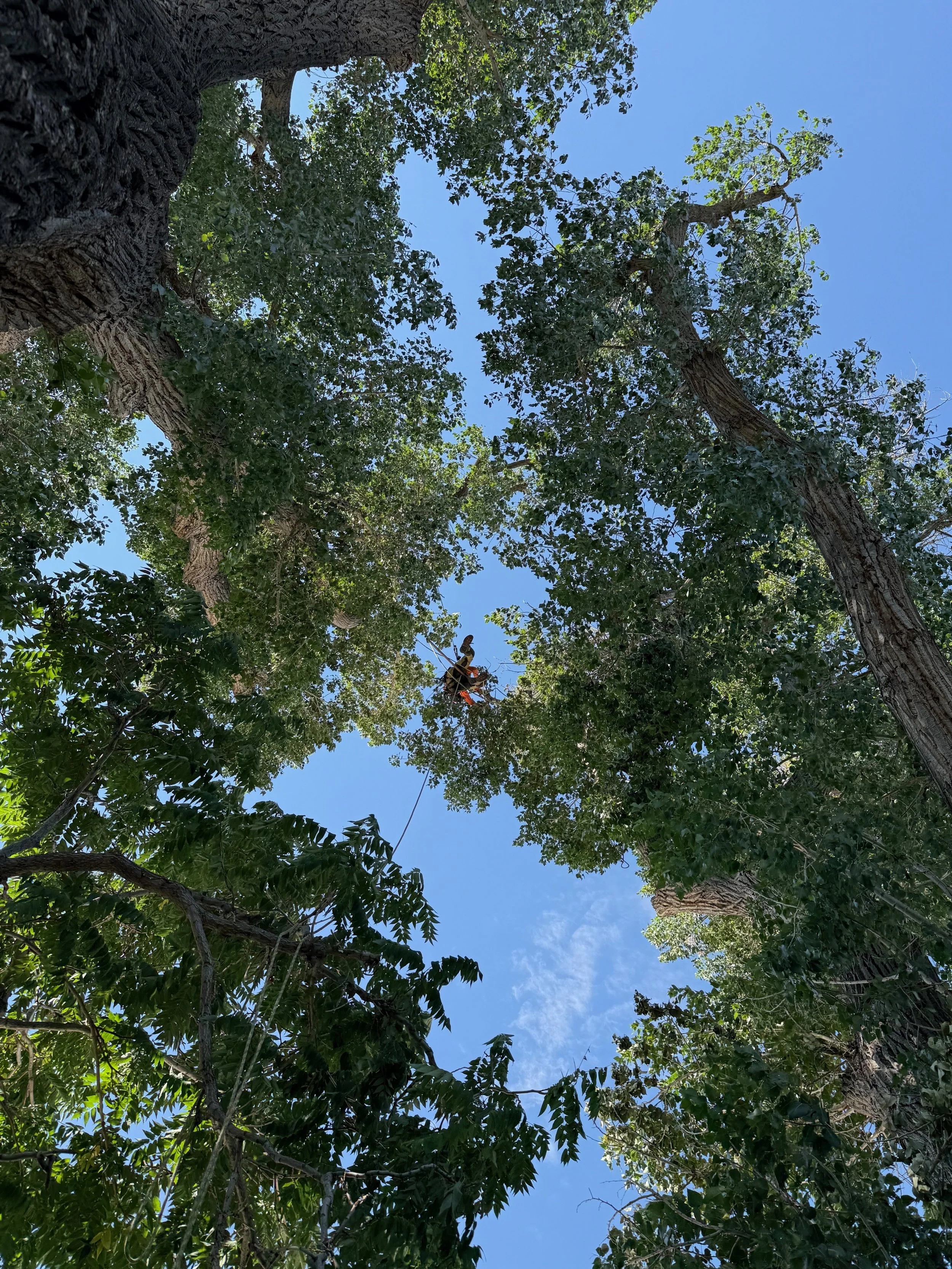

“Phillip came out to one of my job sites and he utilized the KBNest on a 95 foot tall Cottonwood. From 1 anchor point with the KBNest he was able to set up 3 different climbing lines and access 3 very difficult areas of the tree. It was amazing to see the speed in which he was set up and ready to work and the benefit of having 1 anchor point with 3 climbing lines ready to go. It is very easy to use and will save you a lot of time setting up and moving around the tree.”
